Design XS – Mullion Reader

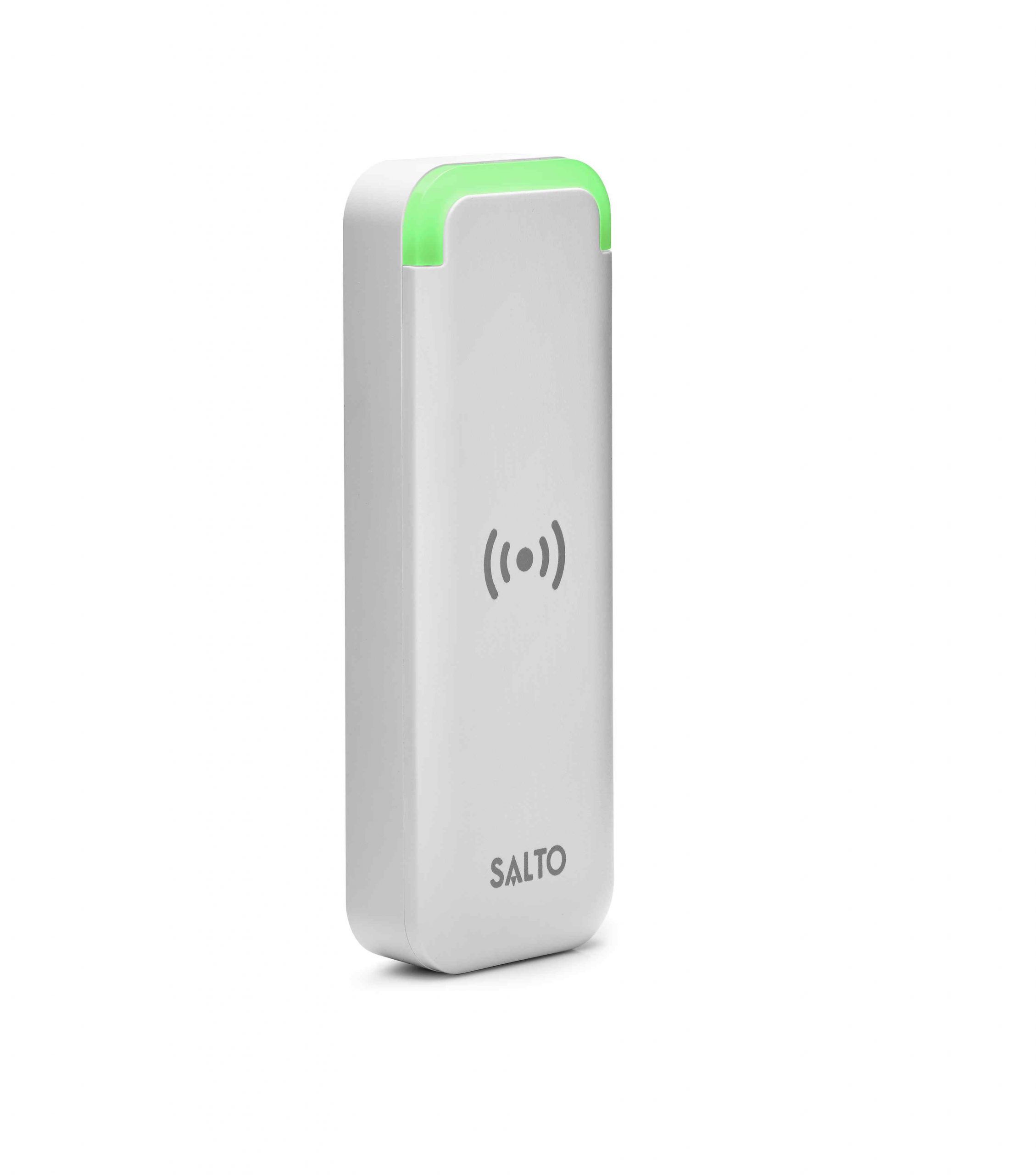

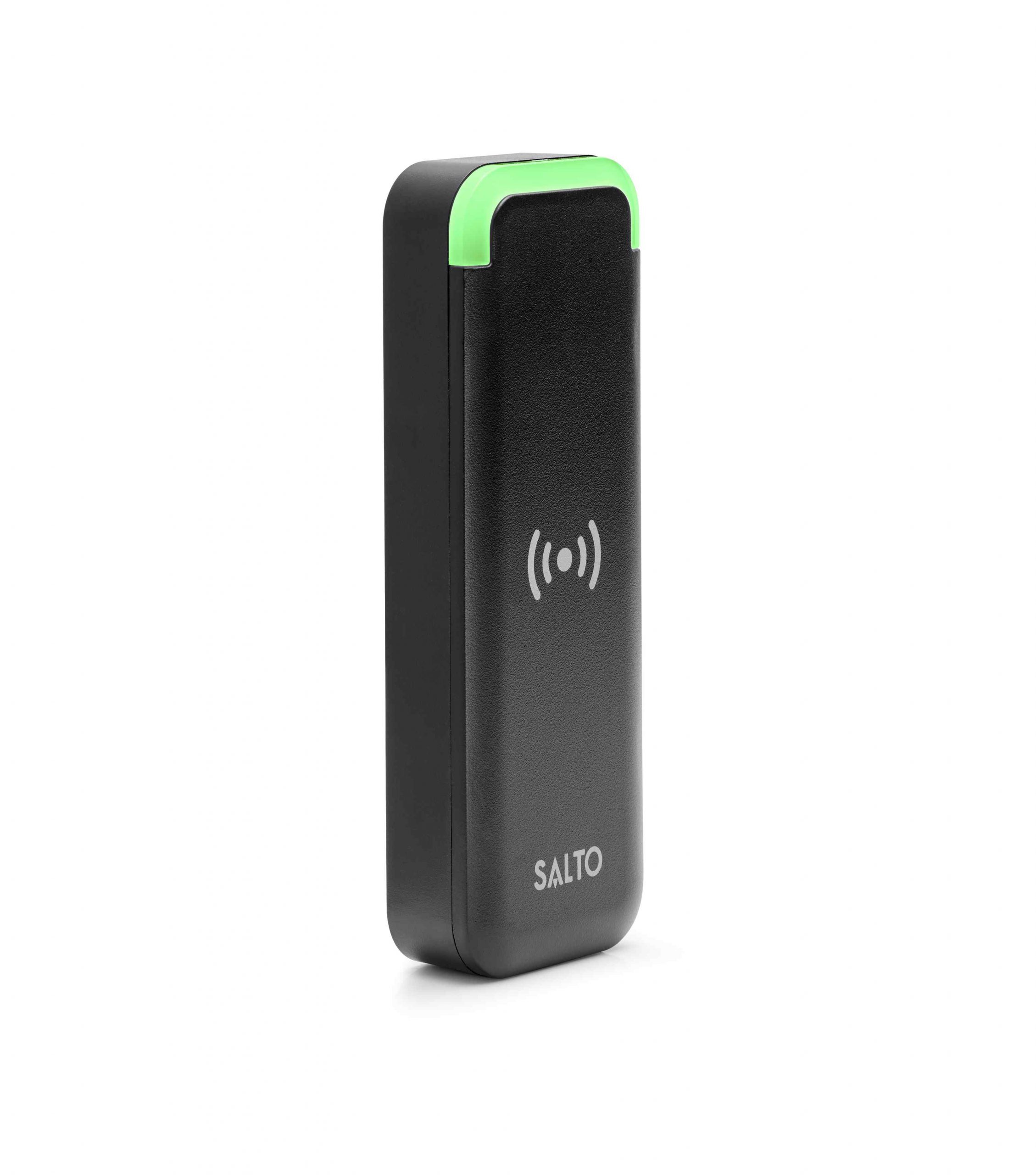

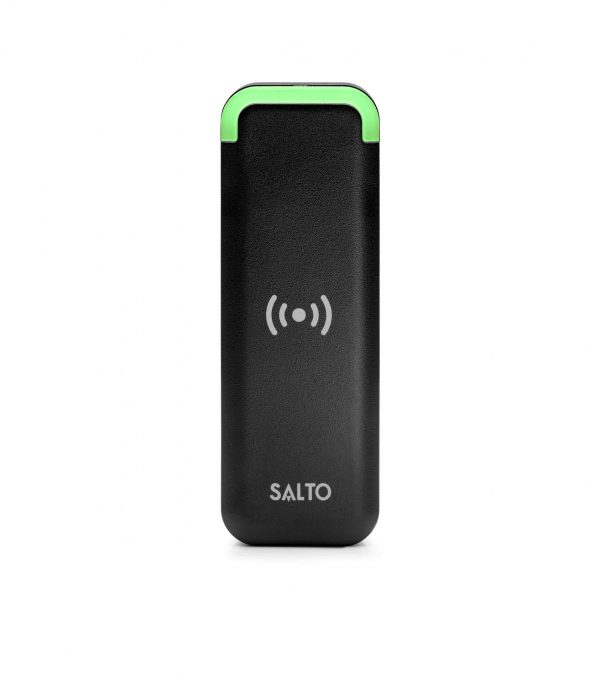

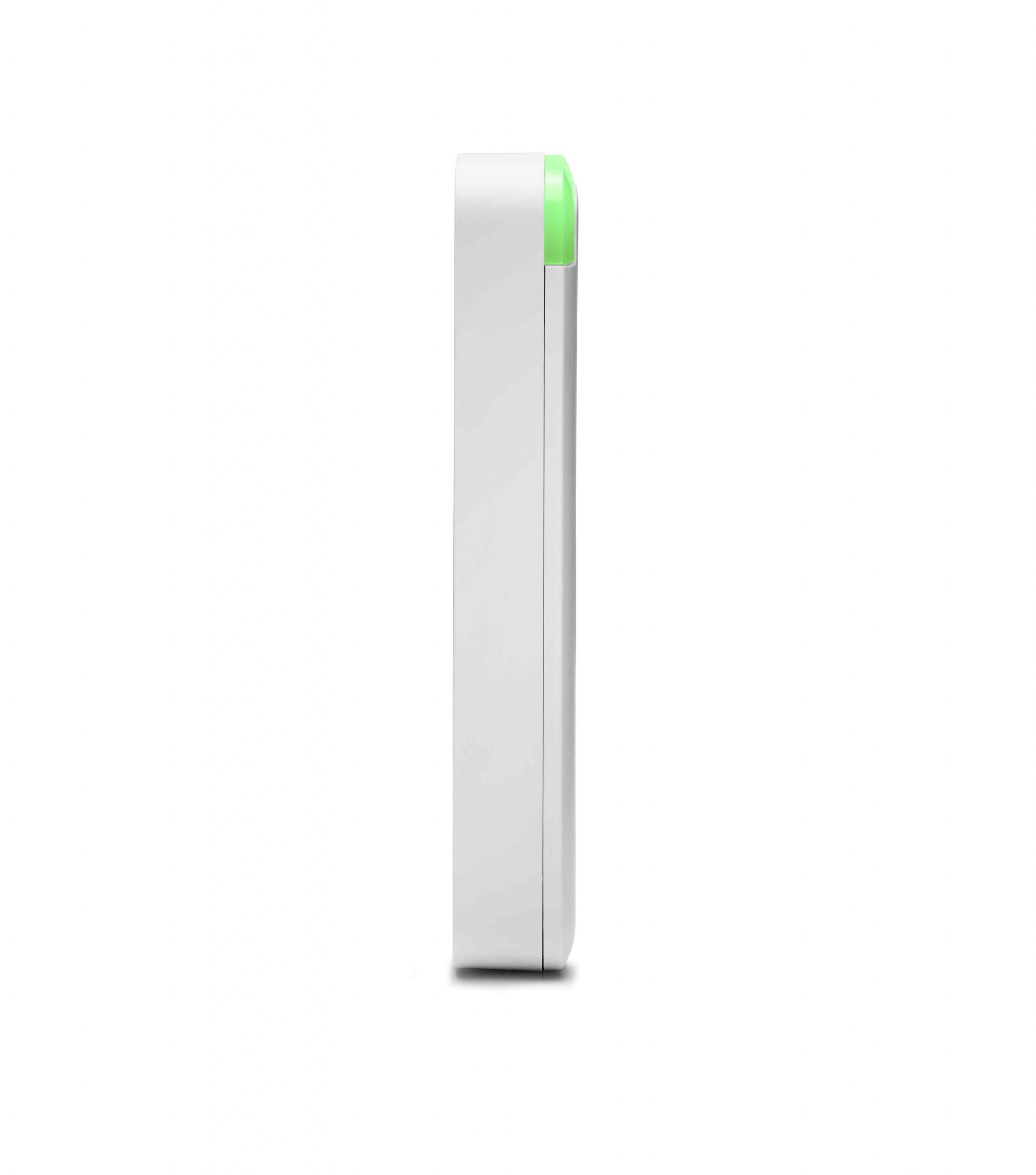

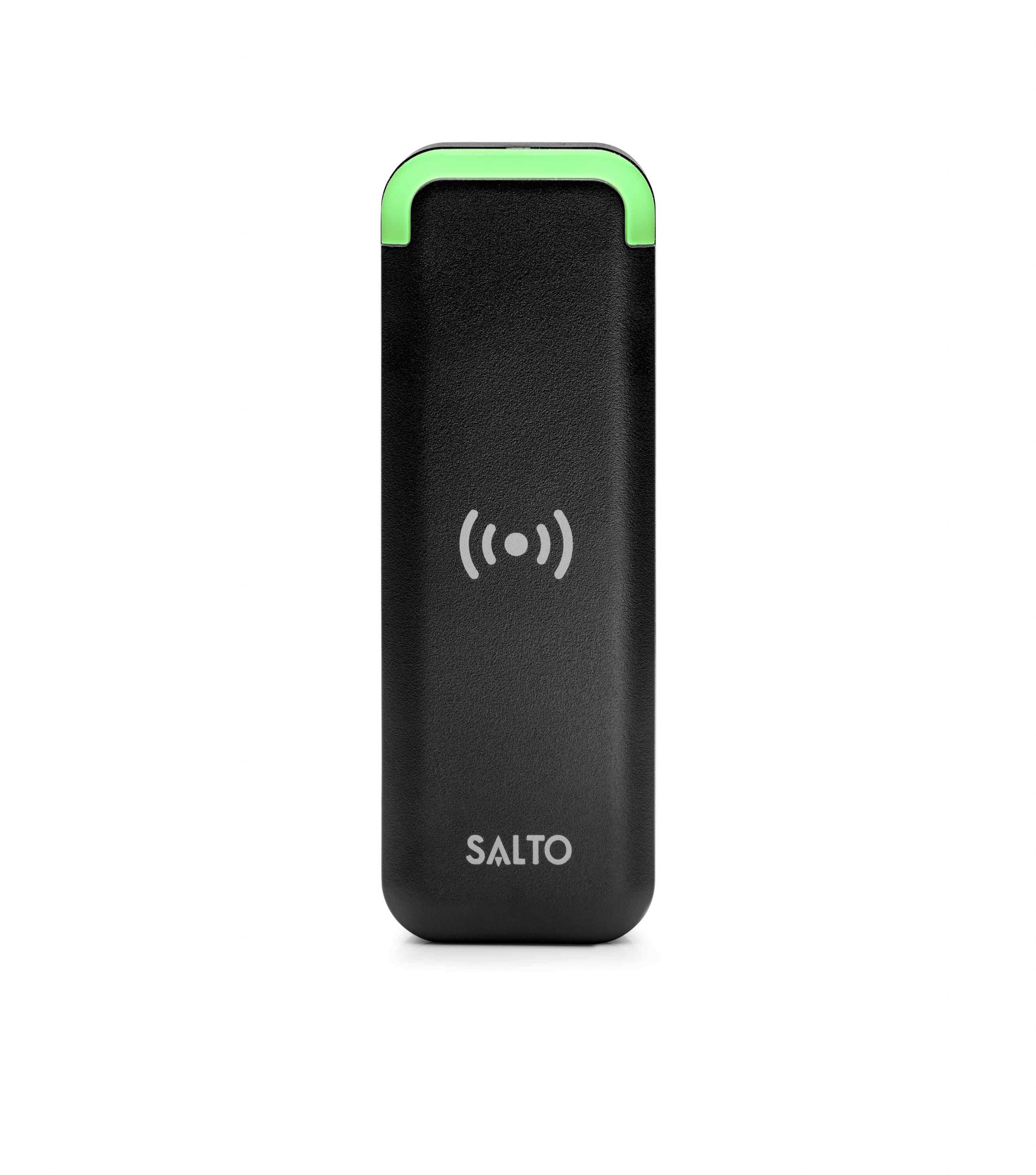

SALTO XS4 Mullion Reader Proximity BLE DESFire/Mifare. Mullion reader to be fitted in narrow profile surfaces.

Get in Touch with us to purchase

Scroll down for more information ▼

MAIN FEATURES

  • Compact slim reader module design reader.
  • Specially designed for narrow or aluminium profile doors, making the installation quick and easy with minimal impact.
  • Reader is housed in a two-piece, weatherproof secure electronics potted enclosure.
  • Fully integrated with the SALTO XS4 platform.
  • Virtual network capable through SALTO SVN data-on-card technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
  • For surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.

TECHNICAL CHARACTERISTICS:

  • To be used in combination with XS4 2.0 controllers (CU42xxx).
  • Maximum distance the door controller and the wall reader 400m using a twisted pair cable.
  • Connection to the door controller: 4 wires.
  • Designed to work with an online SVN access control platform,  or with a stand-alone system.
  • Includes tamper to monitor if the wall reader has been opened.
  • Reading distance from 35 to 50mm depending on the RFID technology.

OPENING MODES:

  • Opening through key card or smartphone.

PLATFORMS

  • SALTO Virtual Network (SVN) data-on-card
  • JustIN Mobile: Bluetooth SMART (BLE)

ID TECHNOLOGIES

  • MIFARE® (DESFire EV2, Plus, Ultralight C, Classic – ISO/IEC 14443)
  • Bluetooth SMART (BLE)
  • HID iCLASS
  • NFC.

CERTIFICATIONS

READER COLOUR
