Design XS – European Wall Reader

SALTO wall reader Proximity BLE DESFire Mifare. For European standard. Squared or conical shape.

Scroll down for more information ▼

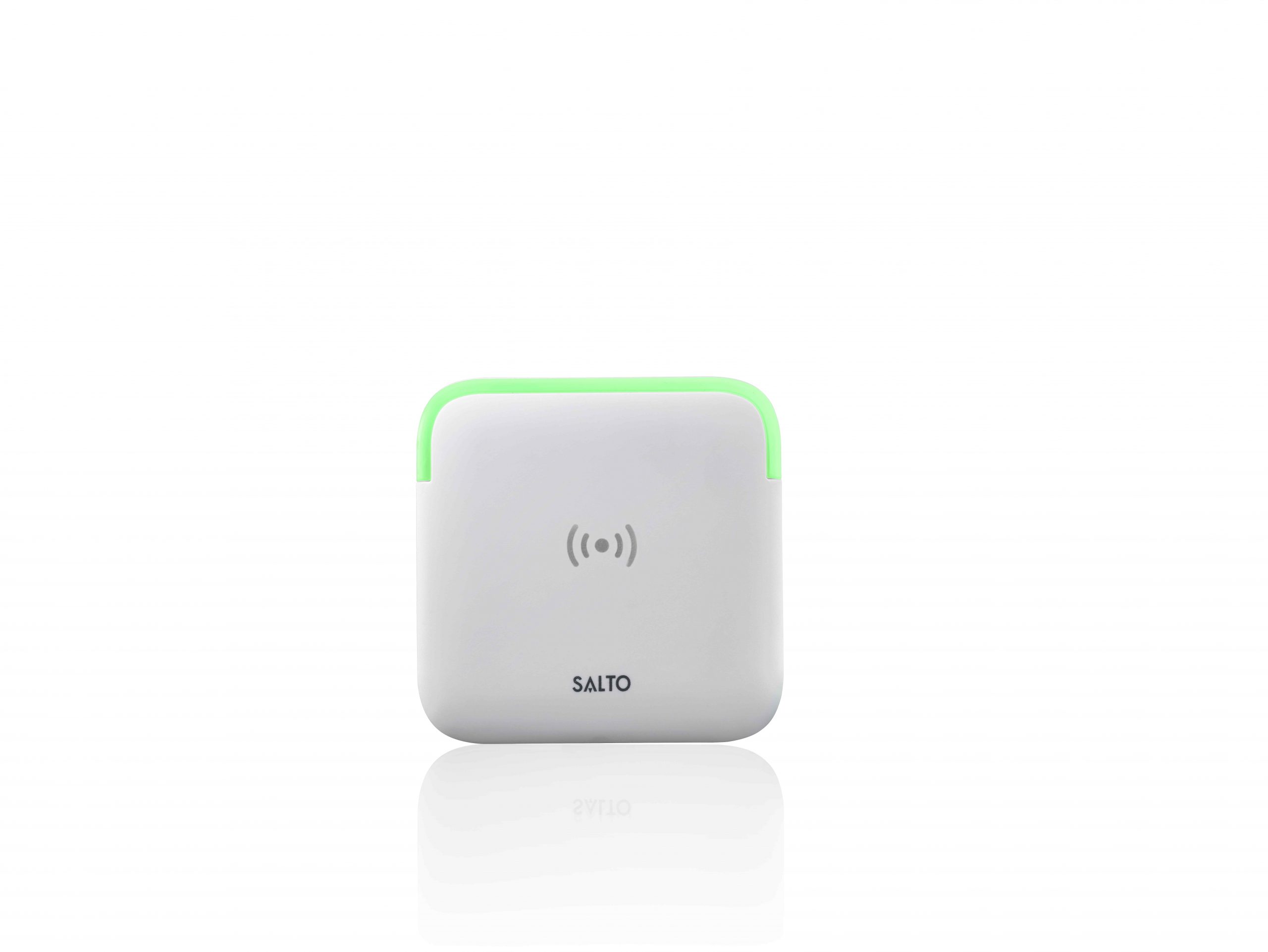

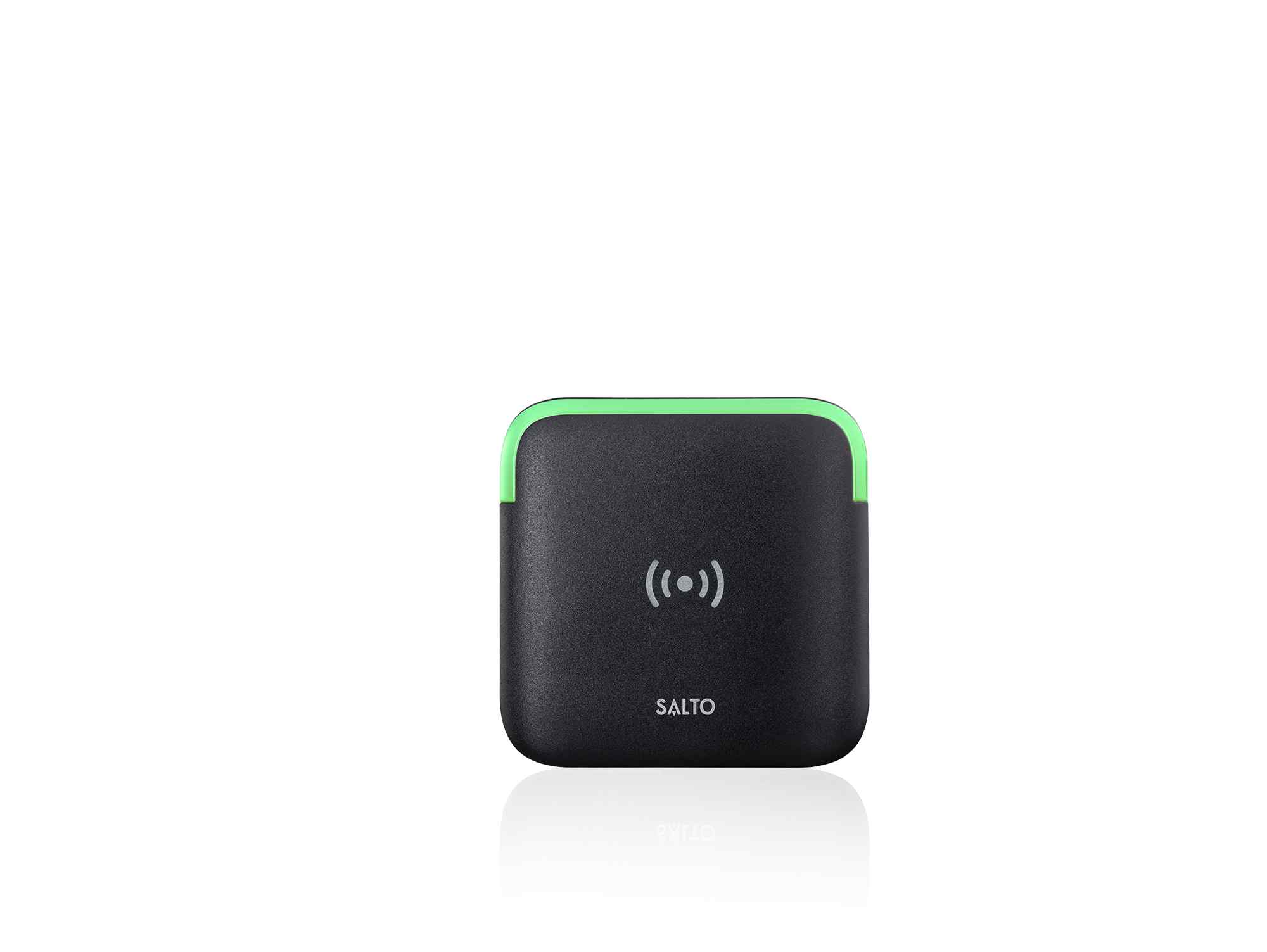

  • Modern aesthetic design with green/red and blue clear LED colour optical signal.

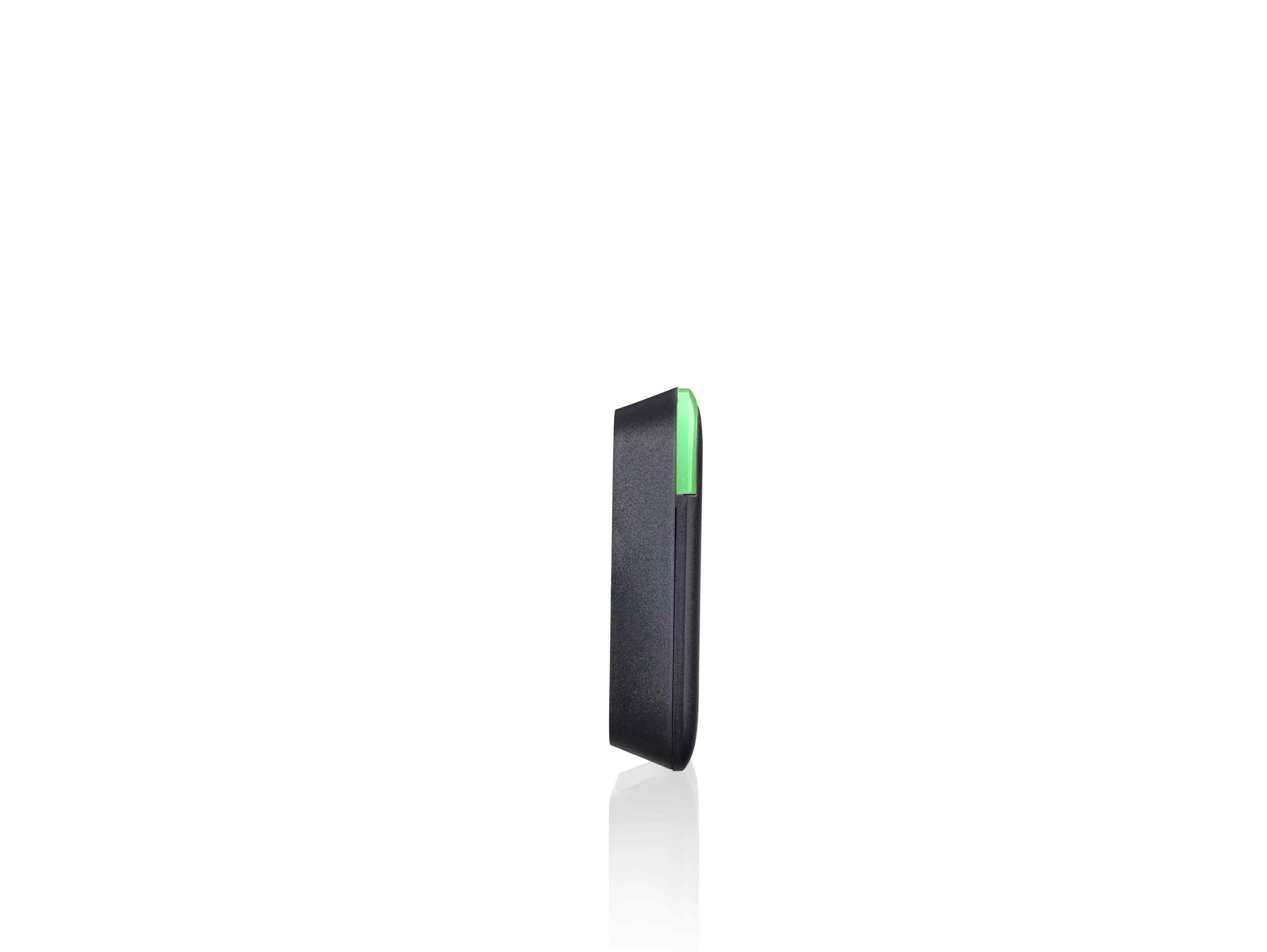

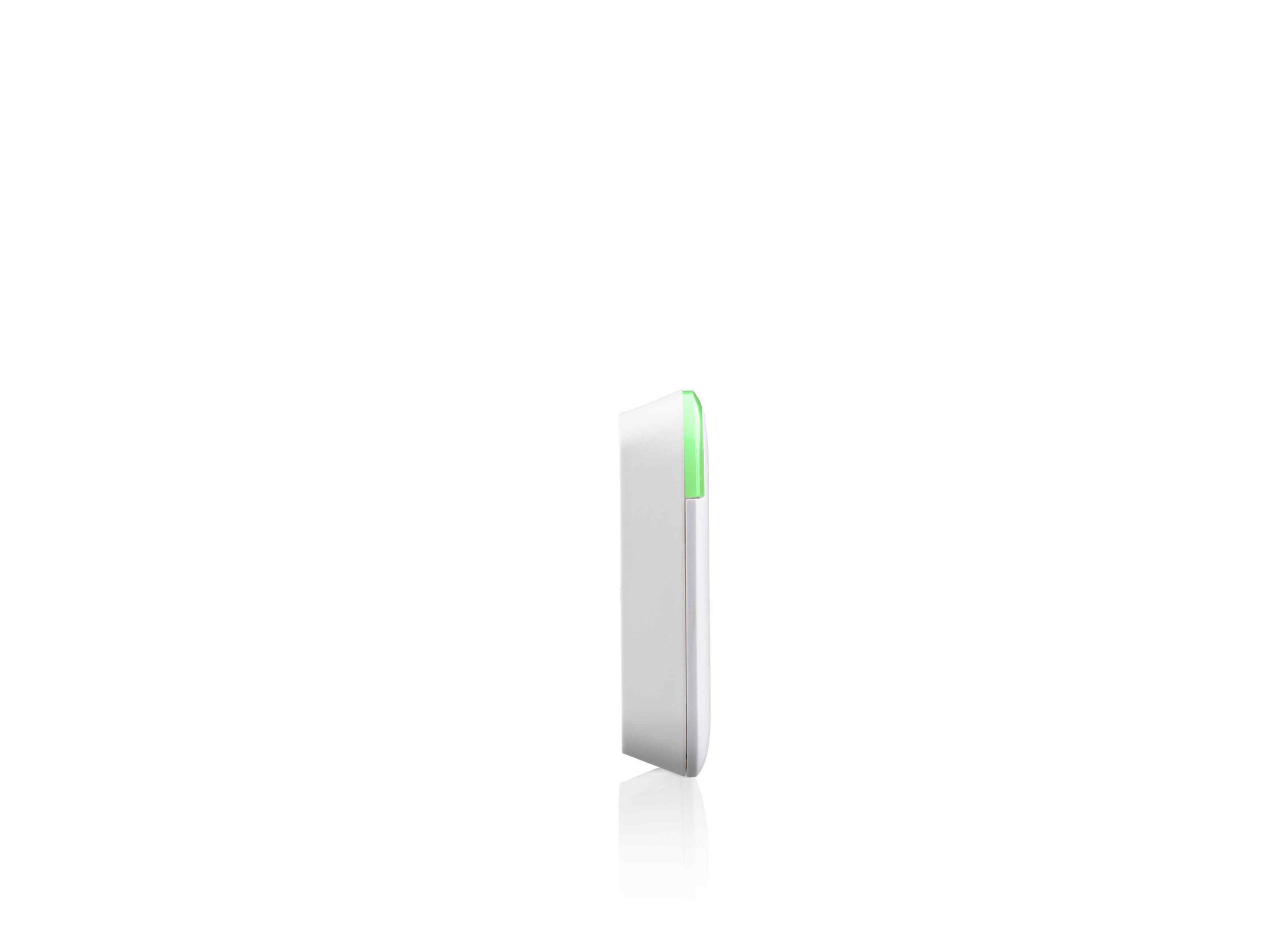

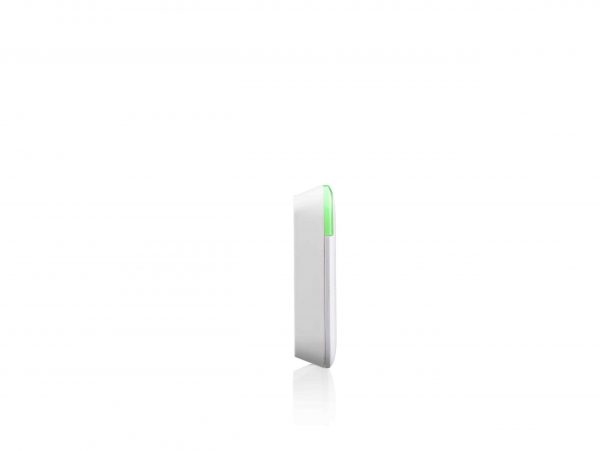

  • Conical or flat square shape with rounded corners.
  • Compatible with standard European electric boxes.
  • Fully integrated with the SALTO XS4 platform.
  • Virtual network capable through SALTO SVN data-on-card technology.
  • Acoustic and optical signalling, dual colour green/red to indicate access authorisation.
  • Blue light indicates that the user key update is in progress through SALTO Virtual Network technology.
  • Available for surface mounting.
  • Concealed fixing screws for greater security and improved aesthetics.


  • Specially designed to fit European standard electric boxes, making the installation quick and easy.
  • To be used in combination with XS4 2.0 controllers (CU42xxx)  or SALTO KS controllers (CU41xxx).
  • Connection to the door controller: 4 wires.
  • Designed to work with an online SVN access control platform,  or with a stand-alone system.
  • Maximum distance the door controller and the wall reader 400m1 using a twisted pair cable.
  • Includes tamper to monitor if the wall reader has been opened.
  • Reading distance from 35 to 50mm depending on the RFID technology.


  • SALTO Virtual Network (SVN) data-on-card
  • JustIN Mobile: Bluetooth SMART (BLE)


  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443)
  • Bluetooth SMART (BLE)
  • NFC.
