G9E2

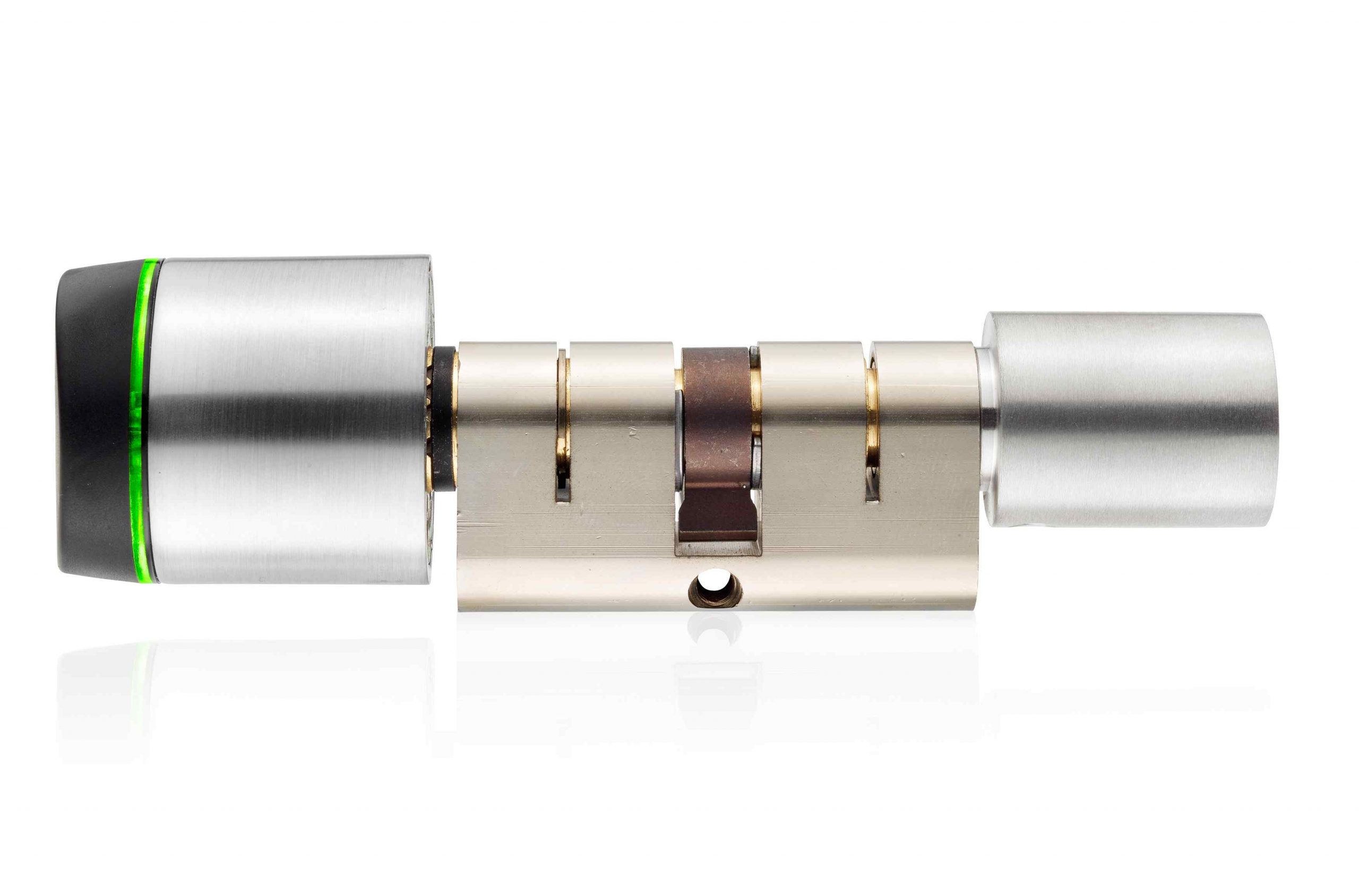

SALTO GEO Euro profile electronic cylinder Standard cylinder, one knob, one thumbturn

Scroll down for more information ▼

MAIN FEATURES

  • SALTO SVN and SALTO Wireless network capable.
  • All communication the carrier and the electronic cylinder is encrypted and secured.
  • The batteries can be replaced without cylinder removal.
  • Optical signalling through light ring. Dual colour green/red to indicate access authorisation. Acoustic signal optional.
  • Equipped with anti-drilling protection.
  • Optional torx screw to tighten the knob and the cylinder on a fixed knob cylinder.
  • Emergency opening via portable programming device (PPD).
  • AMOK function adds a safe outside override even if the inside cylinder thumbturn is manually blocked.

TECHNICAL CHARACTERISTICS:

  • Thickness available from 40mm up to 370mm (special body available for glass doors).
  • Plus plug options (+5mm / +10mm) for doors where cylinders needs additional the knob and the body.
  • Different cam options:
    •     European profiles DIN 15mm.

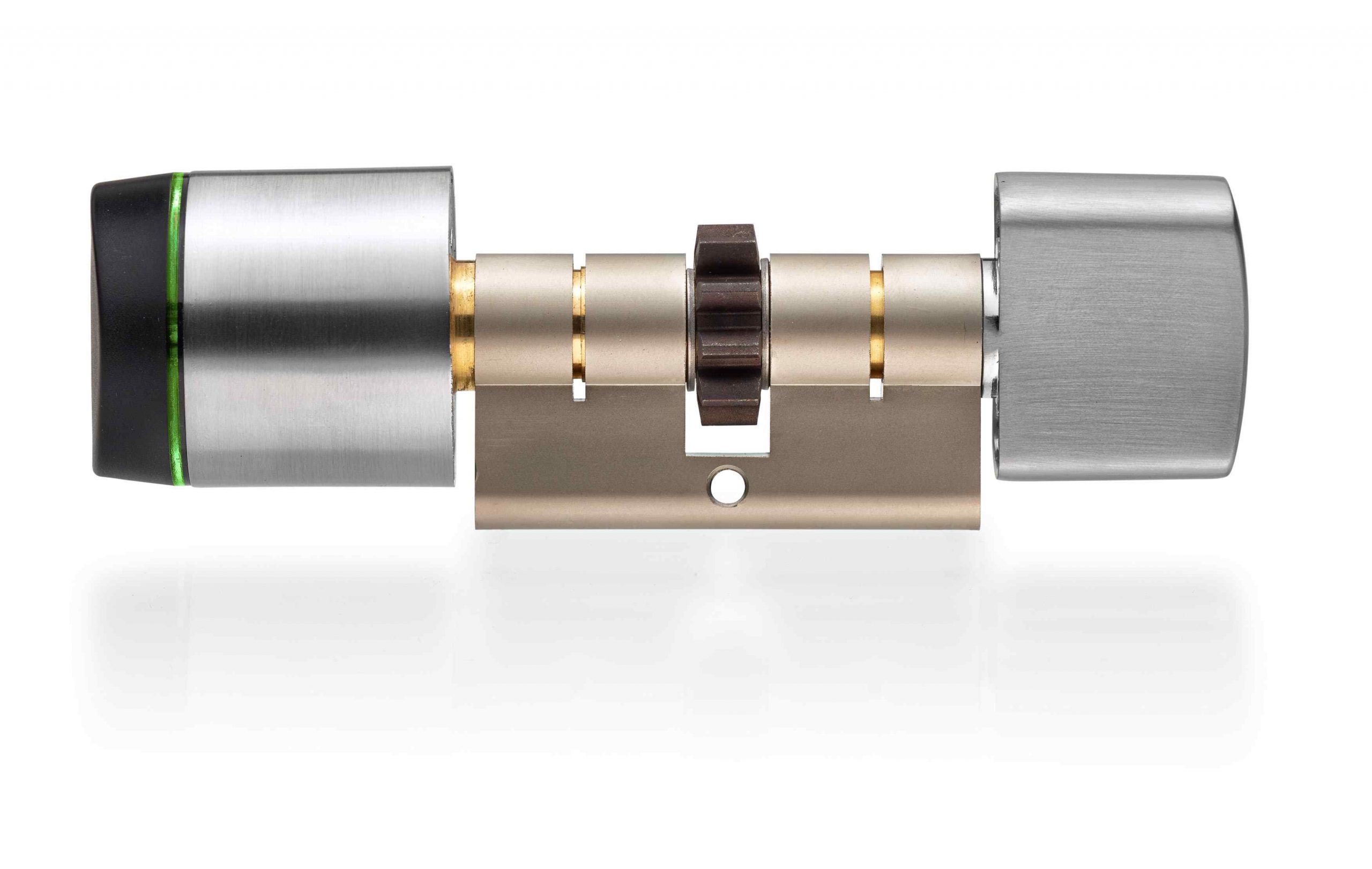

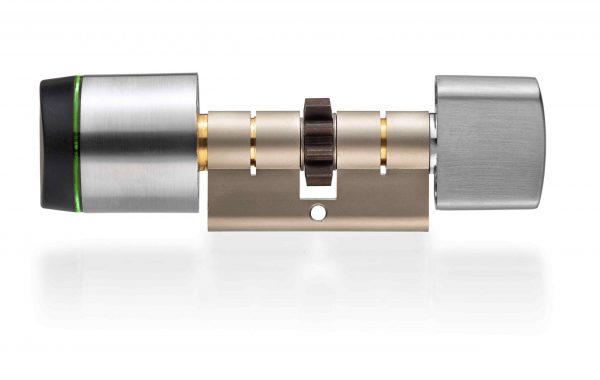

    •     Cog wheel: 10 tooth cam and 13 tooth cam.
    •     Spain: 13,2mm for metal doors.
  • Versions for glass doors available.

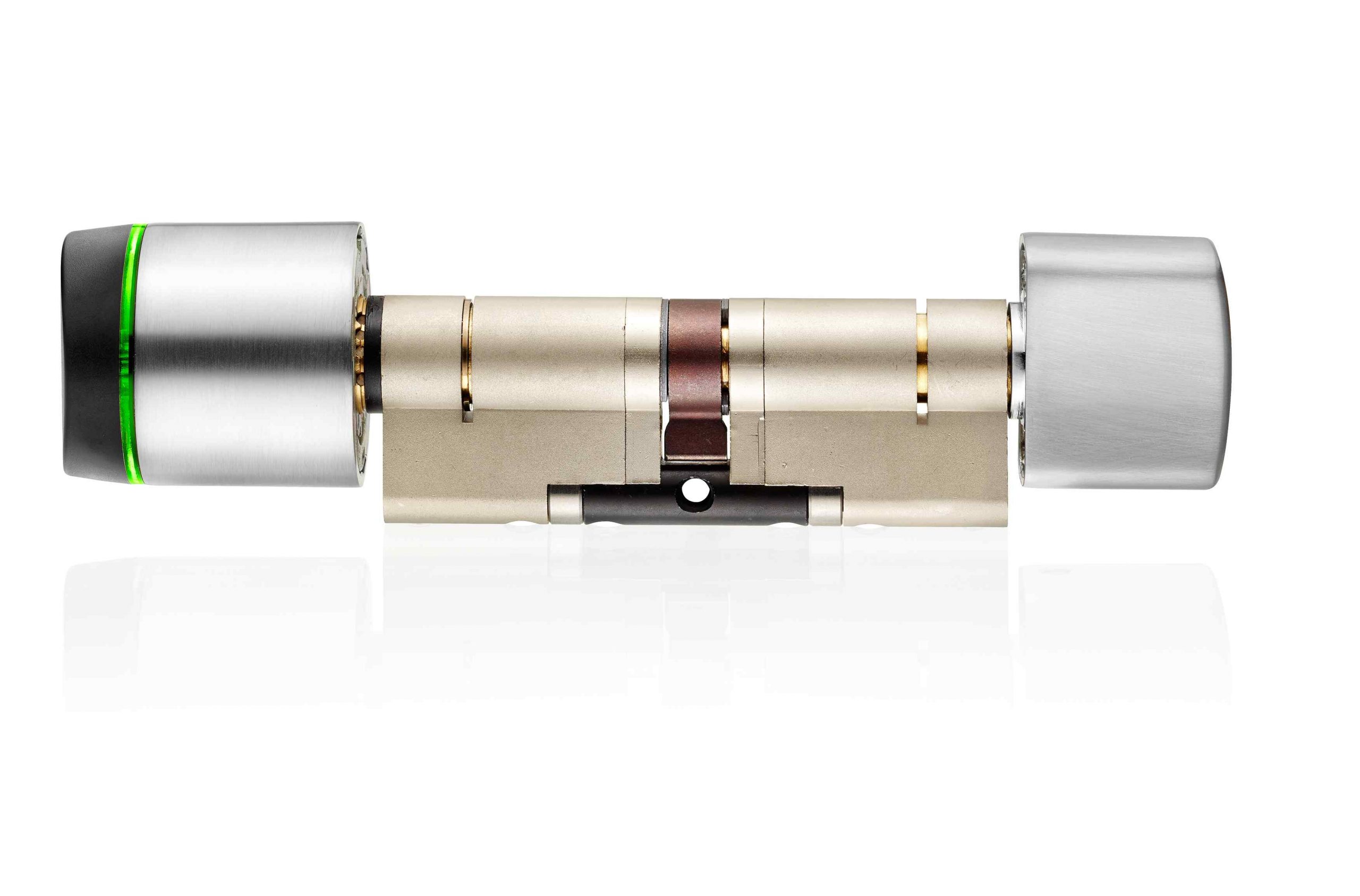

  • Modular cylinder body assembly on standard configuration option available.
  • Available with 2 different locking thumbturns on the inside to operate the cam.
  • Anti-panic function available.
  • AMOK function available for cylinders with thumbturn.

PLATFORMS

  • ROM
  • SALTO Virtual Network (SVN) data-on-card
  • SALTO Wireless real-time access control

ID TECHNOLOGIES

  • MIFARE® (DESFire EV1, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • NFC.
  • LEGIC Prime and LEGIC Advant.
  • HID iCLASS®.

CERTIFICATIONS

*depending on the model


READER COLOUR

FINISHES
