EM451

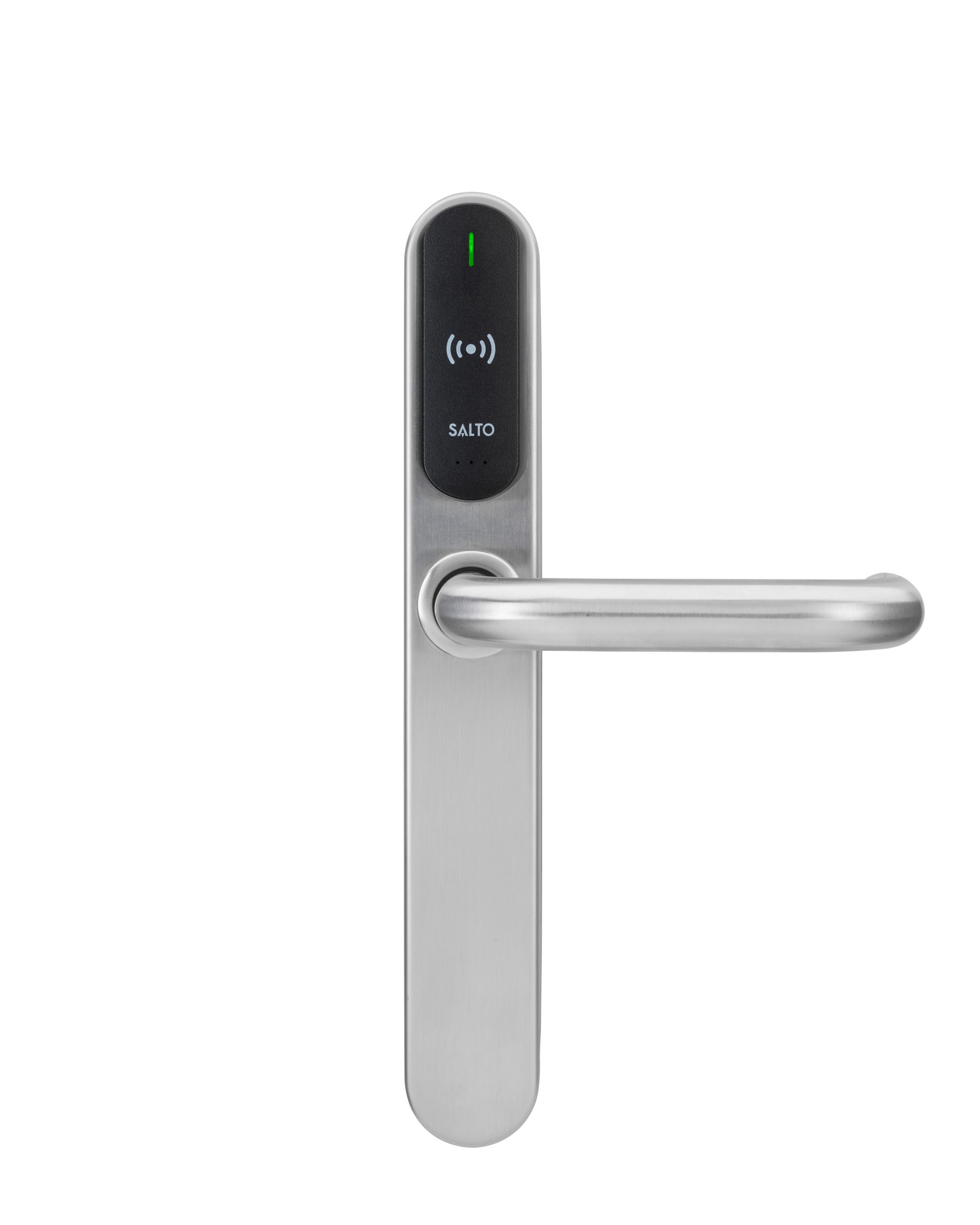

SALTO XS4 Electronic Escutcheon E9451, 2 Handles, any type, inside thumbturn, with connector for mortise lock with micro-switch. Mifare Technology:Standard 8 mm square spindle.

Scroll down for more information ▼

MAIN FEATURES

  • Simple installation is possible on any type of door, including those with narrow frames.
  • Body and escutcheon made of steel.
  • Available with mechanical cylinder cut outs for key override or access lock outs (override European and Cam profile cylinder) with audit trail facility available.
  • Mechanical or electronic privacy option.
  • AMOK option for offline lockdown.
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the relevant mortise lock).
  • Complementary escutcheons without reader available to maintain the aesthetics of doors that do not need to be controlled.

TECHNICAL CHARACTERISTICS:

  • Covers door thicknesses: From 32mm up to 120mm.
  • Dimensions: 282mm x 40mm x 20mm.
  • Reversible handle left or right escutcheon.
  • Clutch mechanism escutcheon; when unlocked handle moves freely.
  • Handle rotation: 33º.

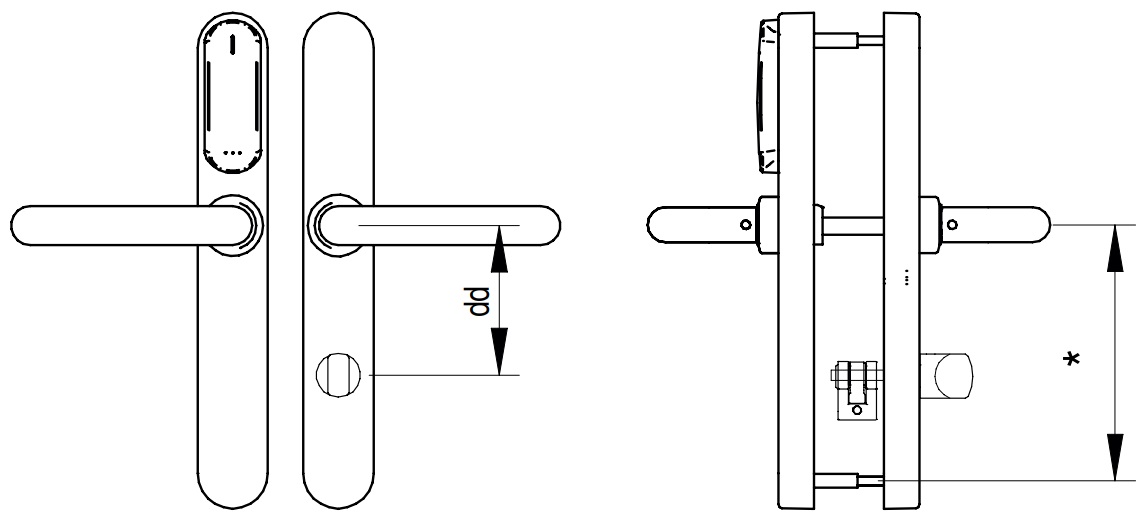

  • Distance from the handle to the cylinder: 47mm to 110mm.
  • Compatible with DIN and European mortise locks, mortise locks with Swiss profile cylinder, Australian standard mortise locks and narrow style mortise lock.
  • Compatible with SALTO LT2L Tubular Latch. (“A2” option).
  • Compatible with European profile and Swiss profile cylinders.
  • Square spindles available: 7mm, 7.6mm split (Australia), 8mm, 8mm split (Euro & ANSI), 9mm and 9mm split.

PLATFORMS

  • SALTO Virtual Network (SVN) data-on-card
  • SALTO Wireless real-time access control
  • JustIN Mobile: Bluetooth SMART (BLE)

ID TECHNOLOGIES

  • MIFARE® (DESFire EV2, Plus, Ultralight C, Classic – ISO/IEC 14443).
  • Bluetooth SMART (BLE).
  • NFC.
  • Inside Picopass.
  • LEGIC Prime and LEGIC Advant.
  • HID iCLASS®.

CERTIFICATIONS

*external escutcheon

FINISHES
